Industrial Slip Rings

OVERVIEW

These models are typically used when electrical current requirements exceed 10 amps, handling up to 40 amps per pass.

Technical Specifications

These models are used when electrical current requirements exceed 10 amps and can handle up to 40 amps per pass. This line is often used for industrial applications or in cable reels.

  • Previous Model #s: 102, 350, and 351 Models
  • Up to 70+ electrical passes
  • 3.5KV and 5/10/20/40A standard (higher voltage and amperage possible)
  • Lower amperage passes available for applications with low and high amp requirements
  • Large channel count (16+) fiber rotary joints can be integrated
  • 3.5”or 5.5” diameter stainless steel body standard
  • Subsea environment (with oil-fill and pressure-compensation) configuration available
  • Mounting flange on shaft or on body
  • Similar functionality, size and mounting to “Model 176” slip rings
  • IP65 standard (higher level sealing optional)

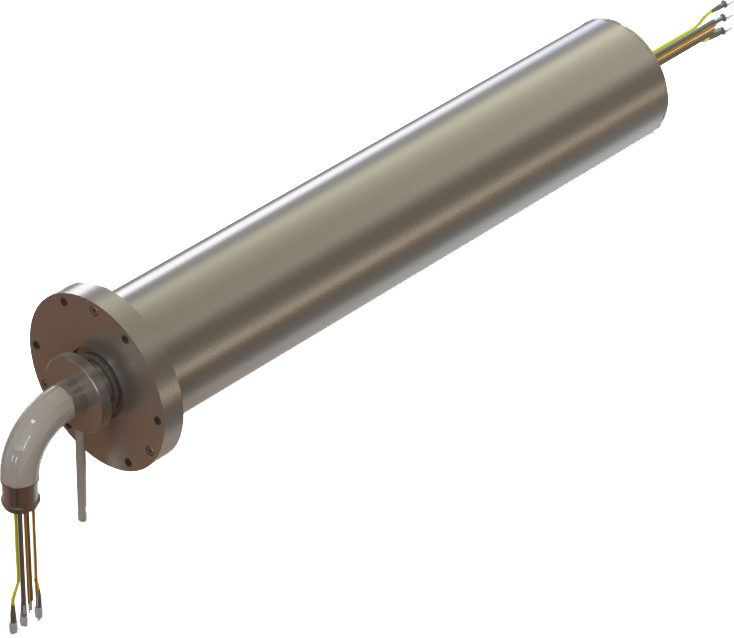

Alpha Slip Ring

Technical Drawing

Through Bore Alpha Slip Ring Drawing
