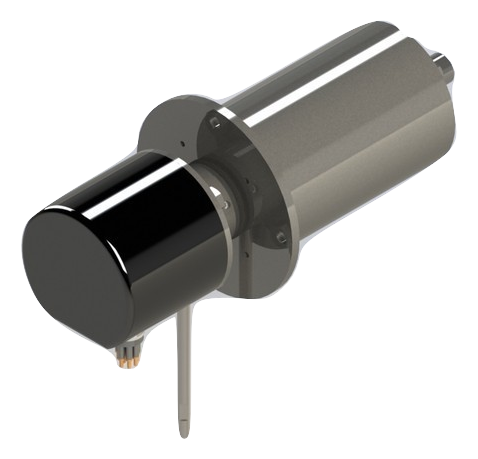

Cable Reel Slip Rings

OVERVIEW

This model family is often used with small cable reels with the body mounted externally or in industrial equipment. Subsea versions are available.

Technical Specifications

This model family is easy to quickly configurable for new design variations. Subsea versions are available.

  • Previous Model #s: 100, 101, 223, and 343 Models
  • Up to 60 electrical passes
  • 600V and 5/10A standard (higher voltage and amperage are possible)
  • 2.4”or 2.9” diameter stainless steel body standard
  • Optional fiber rotary joints with up to 7 channels
  • Often used with small cable reels with the body mounted externally or in industrial equipment
  • Mounting flange on shaft or on body
  • Similar functionality, size and mounting to “Model 180” slip rings
  • IP 65 standard (higher level sealing available)

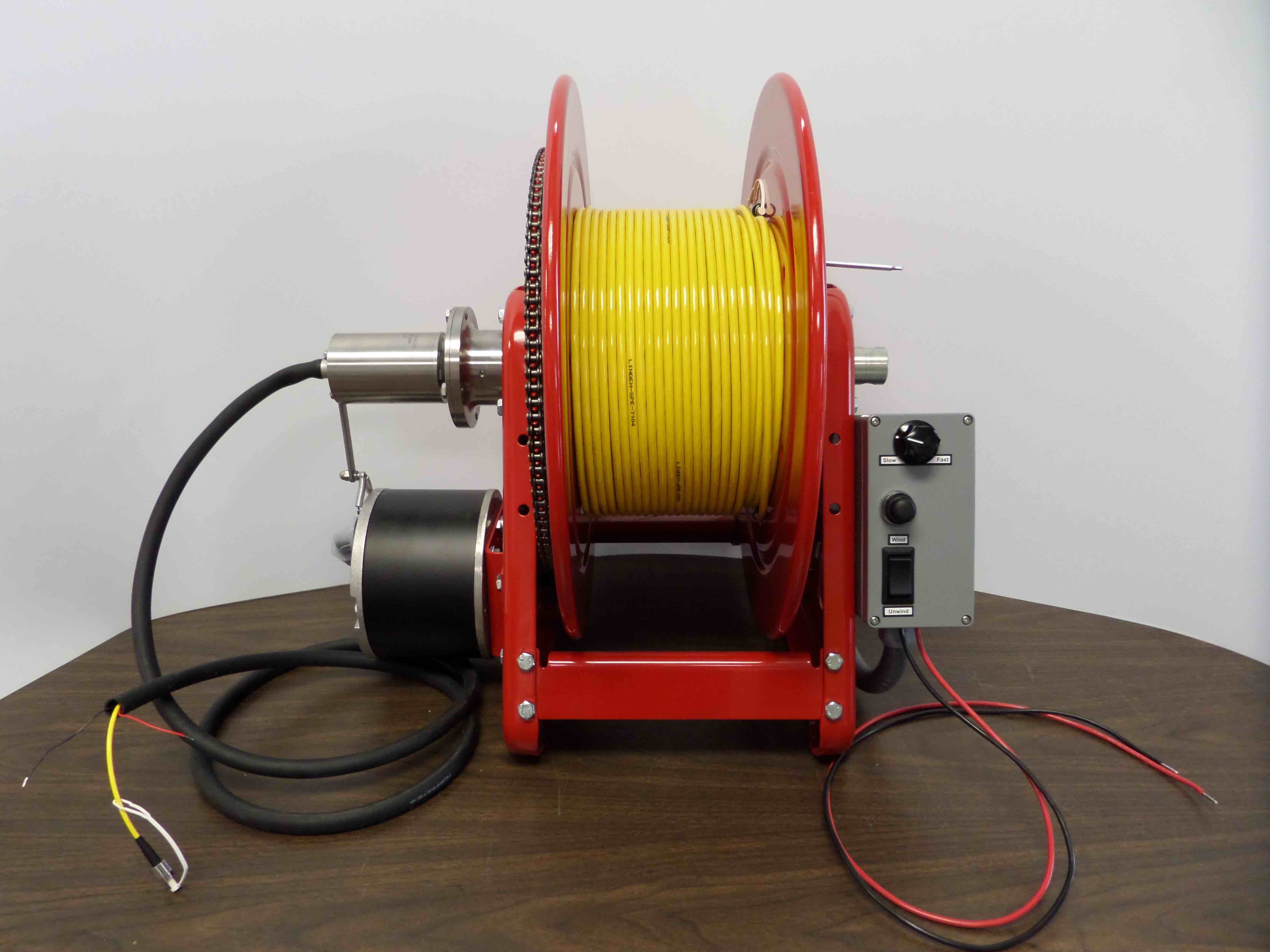

Full Cable Reel Assembly with Slip Ring Available

Alpha Slip Ring

Technical Drawing

Through Bore Alpha Slip Ring Drawing
